Lenovo ThinkServer ST 50 – Intel Xeon Processor E-2224G (3.5GHz, 4.7Ghz Turbo 8 MB Smart Cache, 4Core/4 Threads, 71W, 16GB 2666MT/s DDR4, 480GB Entry SATA 6Gb SSD, 3 PCIe Slots | E-2224G Price in Lahore Karachi Islamabad Pakistan
Product Features of Lenovo ThinkServer ST 50 - Intel Xeon Processor E-2224G (3.5GHz, 4.7Ghz Turbo 8 MB Smart Cache, 4Core/4 Threads, 71W, 16GB 2666MT/s DDR4, 480GB Entry SATA 6Gb SSD, 3 PCIe Slots | E-2224G Price in Lahore Karachi Islamabad Pakistan
Description for Lenovo ThinkServer ST 50 – Intel Xeon Processor E-2224G (3.5GHz, 4.7Ghz Turbo 8 MB Smart Cache, 4Core/4 Threads, 71W, 16GB 2666MT/s DDR4, 480GB Entry SATA 6Gb SSD, 3 PCIe Slots | E-2224G
Features :
Processor: Intel Xeon Processor E-2224G (3.5GHz, 4.7Ghz Turbo, 8 MB Smart Cache, 4Core/4 Threads, 71W)
Memory: 16GB 2666MT/s DDR4 ECC UDIMM (4 DIMM Slots; Max 64GB)
Disk Bays: Up to 4x 3.5-inch non-hot swap (NHS) drive bays
Disks: 2 x ThinkSystem 2.5″ 5300 480GB Entry SATA 6Gb SSD
Storage controller: Intel RSTe software RAID (RAID 0, 1, 10, 5)
Optical Drive: Slim SATA DVD-RW
Network Controller: 1* Integrated Gigabit Ethernet 1000BASE-T port (RJ-45) using Intel i219-LM controller
Slots: 3 PCIe Slots ( 3.0×16 ; 3.0×1 FHHL, 3.0×4 FHHL)
Ports: (Front 2 x USB3.1G1; Rear 4 x USB, 2 x DP Video, 1x Serial Port)
Power Supply: One fixed power supply, 250W. 80 PLUS Platinum certified.
Form Factor: 4U Tower 175mm (W) x 375mm (H) x 407mm (D)
Availability and serviceability
The ST50 provides many features to simplify serviceability and increase system uptime:
- The ST50 supports UDIMM memory with ECC protection which provides error correction not available in PC-class “servers” that use parity memory. Avoiding system crashes (and data loss) due to soft memory errors means greater system uptime.
- Tool-less cover removal provides easy access to upgrades and serviceable parts, such as memory and adapter cards.
- A choice of affordable onboard SATA RAID or advanced hardware RAID redundancy offers data protection and greater system uptime.
- The use of SSDs can provide better reliability than the use of traditional HDDs, for greater uptime.
- Built-in Active Management Technology based on Intel Active Management Technology (AMT) 12.0 which continuously monitors system parameters, sends alerts, and enables administrators to perform remote recovery actions to minimize downtime.
- The Lenovo XClarity Provisioning Manager Lite tool can be used to install an operating system on the server and perform system diagnostics.
- One-year or three-year customer-replaceable unit (CRU) and onsite limited warranty with next business day response. Optional service upgrades are available.
Manageability and security
Powerful systems management features simplify local and remote management of the ST50:
- Intel Active Management Technology (AMT) 12.0 monitors server availability and enables administrators to perform remote management.
- An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
- An integrated hardware Trusted Platform Module (TPM) supporting TPM 2.0 and 1.2 enables advanced cryptographic functionality, such as digital signatures and remote attestation.
- Protects application code and data from disclosure or modification with Intel Software Guard Extensions (SGX), enabling high-assurance security use cases, such as blockchain, identity and records privacy, secure browsing, and digital rights management (DRM).
- Administrator and power-on passwords help protect from unauthorized access to the server.
- An intrusion switch on the cover of the server and padlock loop at the rear of the server help detect and prevent unauthorized physical access to the internal components of the server .
- A slot for a Kensington-style cable lock helps prevent theft.
Energy efficiency
The ST50 offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to a green environment:
- 80 PLUS Platinum-certified power supply (select models) enables greater energy savings while providing flexibility to meet your business needs.
- Intelligent Cooling Engine (ICE) actively monitors component temperatures in real-time and optimally adjusts the speeds of the fans to keep the system cooler and quieter.
- The ThinkSystem Capacity Planner tool provides information about the power consumption and electric current calculation for the different configurations of servers and other devices, which helps plan deployment of servers and devices in an efficient way.
- Intel Intelligent Power Capability powers individual processor elements on and off as needed, to reduce power draw.
Components and connectors

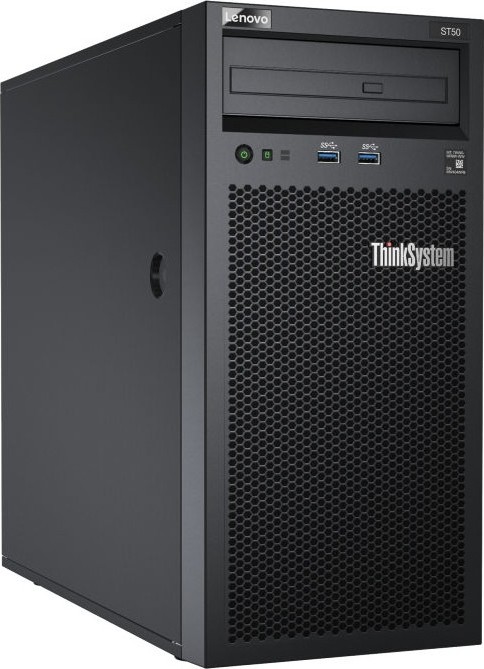

The following figure shows the front of the server.
Figure 2. Front view of the ThinkSystem ST50 server
The following figure shows the rear of the server.
Figure 3. Rear view of the ThinkSystem ST50 server
The following figure shows the locations of key components inside the server.
Free Delivery
We offer express delivery to Dubai, Abu Dhabi, Al Ain, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, UAE for Lenovo ThinkServer ST 50 – Intel Xeon Processor E-2224G (3.5GHz, 4.7Ghz Turbo 8 MB Smart Cache, 4Core/4 Threads, 71W, 16GB 2666MT/s DDR4, 480GB Entry SATA 6Gb SSD, 3 PCIe Slots | E-2224G.
Best Price Guarantee
We offer the best price for Lenovo ThinkServer ST 50 – Intel Xeon Processor E-2224G (3.5GHz, 4.7Ghz Turbo 8 MB Smart Cache, 4Core/4 Threads, 71W, 16GB 2666MT/s DDR4, 480GB Entry SATA 6Gb SSD, 3 PCIe Slots | E-2224G in Dubai, UAE. Buy now with the best price!
Specifications for Lenovo ThinkServer ST 50 – Intel Xeon Processor E-2224G (3.5GHz, 4.7Ghz Turbo 8 MB Smart Cache, 4Core/4 Threads, 71W, 16GB 2666MT/s DDR4, 480GB Entry SATA 6Gb SSD, 3 PCIe Slots | E-2224G
- Lenovo
- 81969
- 08 July, 2021
- 13.10 Kg
- 19.50 cm x 44.40 cm x 39.60 cm
- 1* Integrated Gigabit Ethernet 1000BASE-T port (RJ-45) using Intel i219-LM controller
- 480GB Entry SATA 6Gb SSD
- 16GB 2666MT/s DDR4,
- Intel Xeon Processor E-2224G (3.5GHz, 4.7Ghz Turbo 8 MB Smart Cache, 4Core/4 Threads, 71W,
